Six scenarios stress-test fab yield under the Rough Volatility Hypothesis. Each shows what the path looks like — not just the average.

~0%
Ideal → Stable Loss
7.1%
Stable → Unstable Loss
63.7%
Big-Chip Yield (Cust. N)
59.6%
Unstable Yield (Cust. N)

How to Read These Charts

Each scenario shows three charts side by side:

Yield Chart

Average wafer yield per customer. Bars colored by die area. The yield penalty for large-die products is directly visible here.

Test Floor Load

Test equipment utilization per customer line. Red dashed line = 100% capacity. Bars above this line indicate a test bottleneck that delays shipments.

D₀ Path

The simulated defect density over every wafer processed that month. The RVH fingerprint — roughness, memory, and excursion spikes — is visible in the shape of this path. Dashed line = baseline mean D₀.

Customers: A = 40% capacity, 125 mm² die  ·  N = 30%, 650 mm² die (or 850 mm² in Big-Chip)  ·  DMA = 20%, 150 mm² die  ·  Q = 10%, 130 mm² die

01 — Idealized Static Fab

Unrealistic best-case benchmark: defect density is perfectly flat, no process variation, no excursions. This scenario exists to establish a theoretical ceiling. In practice, no fab achieves a flat D₀ path — but the idealized result shows what the physics of yield allow at baseline D₀ = 0.12.

Idealized Static Fab — yield chart
Yield by Customer
Idealized Static Fab — test load
Test Floor Load
Idealized Static Fab — D₀ path
D₀ Path

02 — Static Baseline

A standard static model with light random noise but no RVH structure — the kind of model most yield engineers actually run. D₀ fluctuates mildly around the mean. This is the straw-man that RVH is designed to outperform when process instability is present.

Static Baseline — yield chart
Yield by Customer

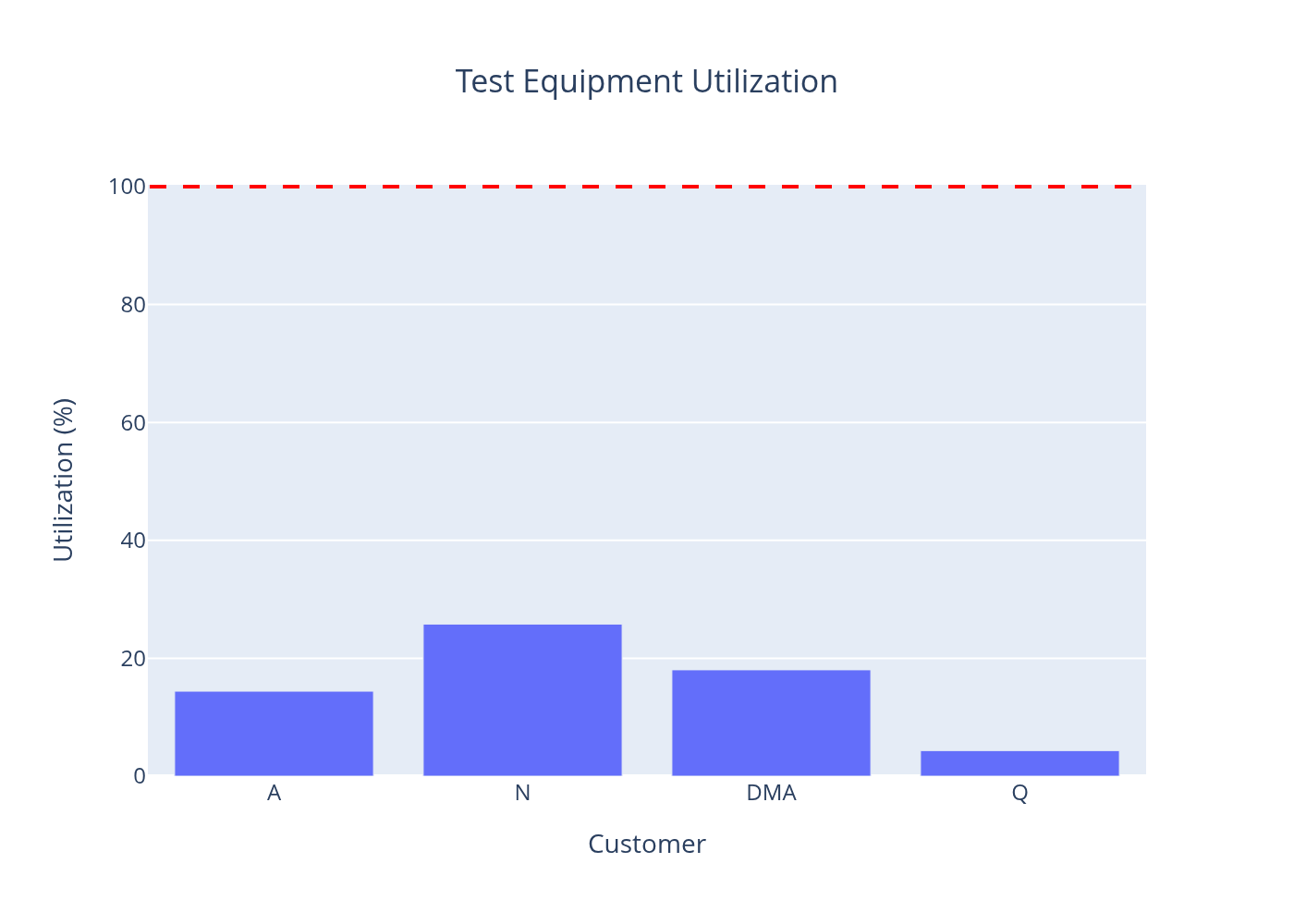

Static Baseline — test load
Test Floor Load

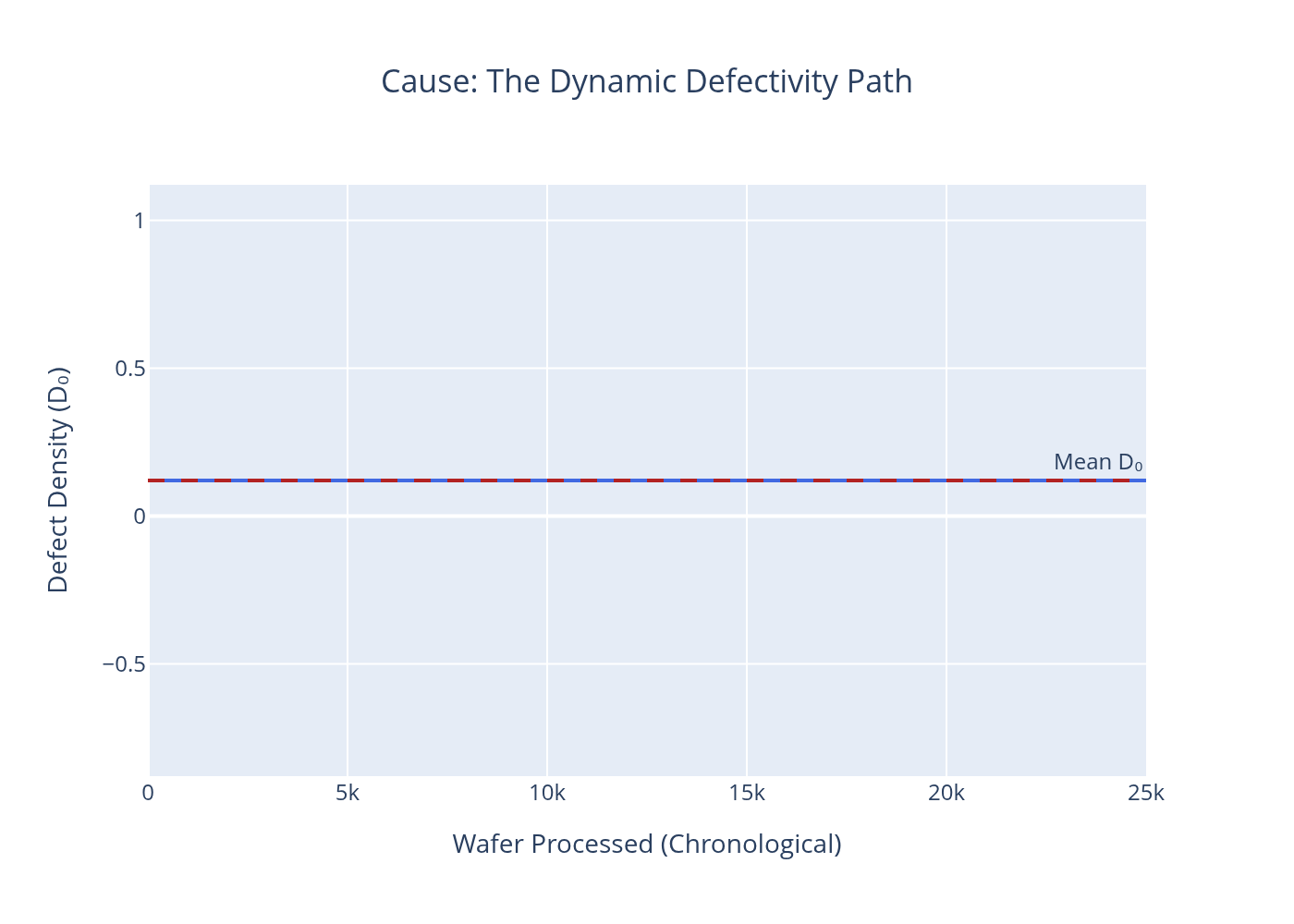

Static Baseline — D₀ path
D₀ Path

03 — Baseline Operation

A well-run real fab: low Hurst exponent, low process volatility, rare and mild excursions. This is the practical operating target. Yields are high for smaller chips. The D₀ path is rough but contained — the signature of a controlled process with normal tool-to-tool variation and occasional minor upsets.

Baseline Operation — yield chart
Yield by Customer
Baseline Operation — test load
Test Floor Load

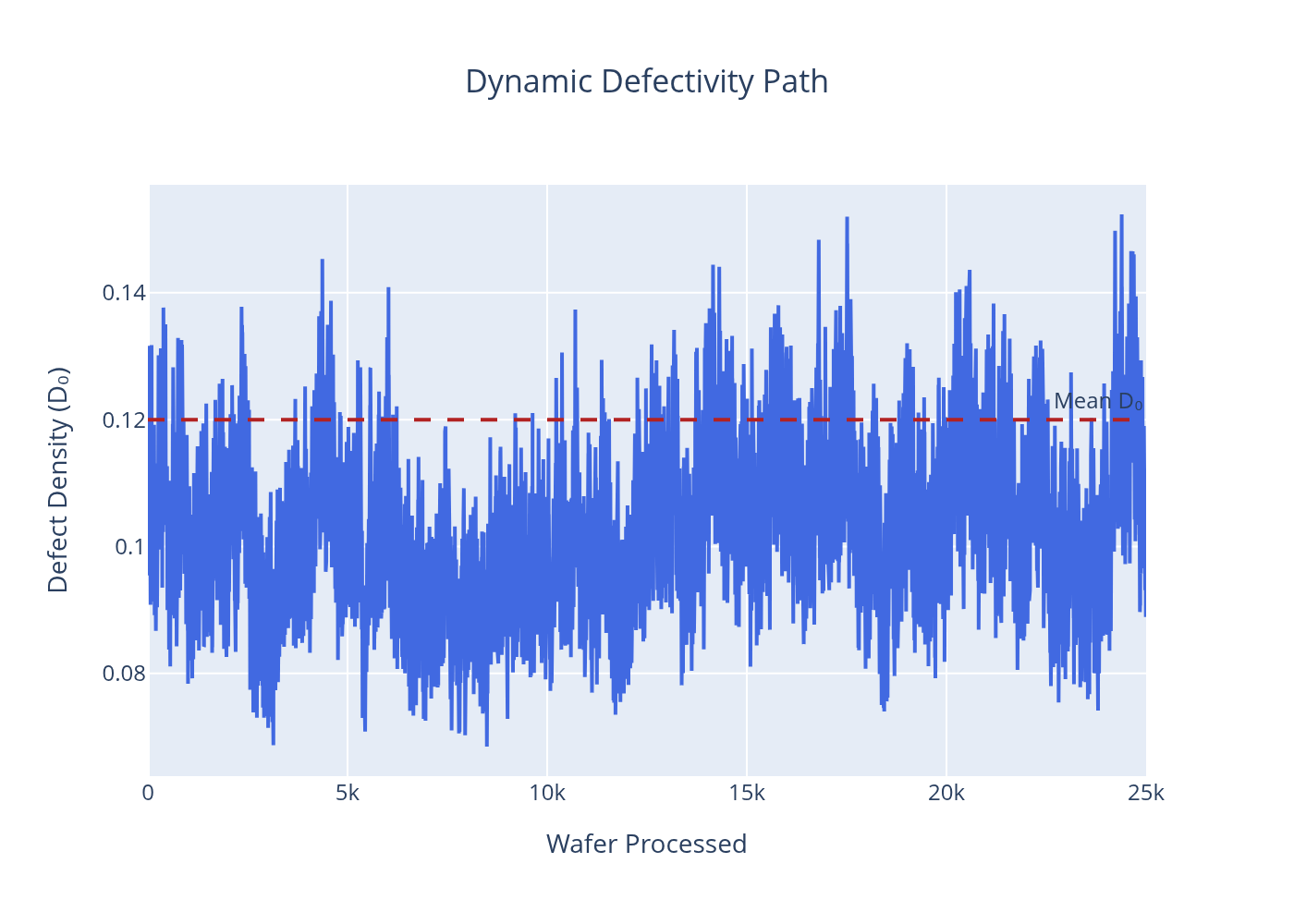

Baseline Operation — D₀ path
D₀ Path
~0%
Output loss: Idealized → Stable baseline
Customer A ideal: 95.0% yield, 4,824,394 dies  ·  stable: 95.0%, 4,824,417 dies. Normal low-level process variation is not the economic threat. The real threat is excursion-prone instability — see below.

04 — Stable Fab with Low Volatility

Full RVH model, calm regime: Hurst exponent near 0.45, very low process volatility, no excursions. The D₀ path has slight roughness and memory but no major deviations. This is the RVH equivalent of a well-controlled fab — and the reference point for measuring the true cost of instability in Scenario 06.

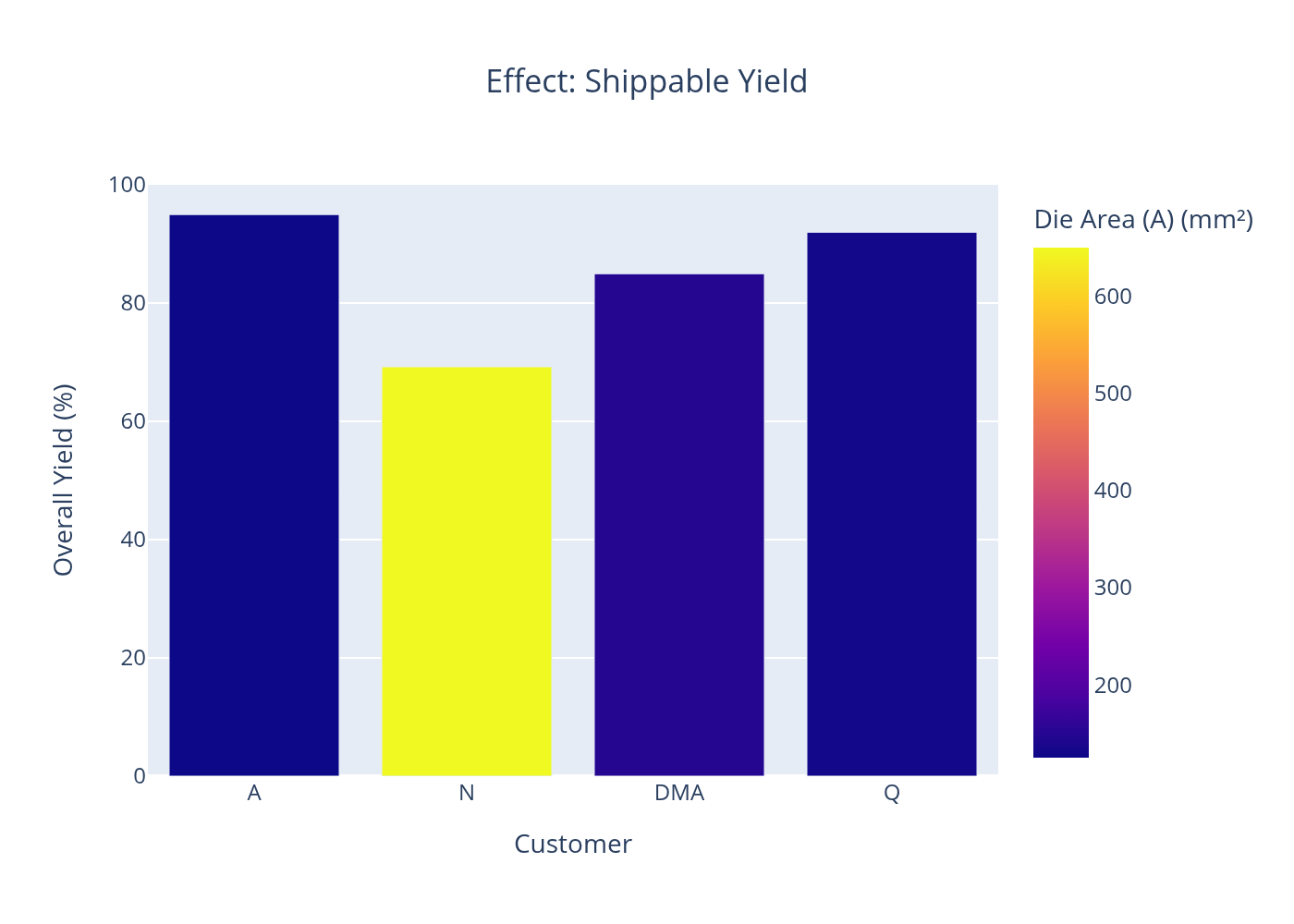

Stable Fab — yield chart
Yield by Customer
Stable Fab — test load
Test Floor Load

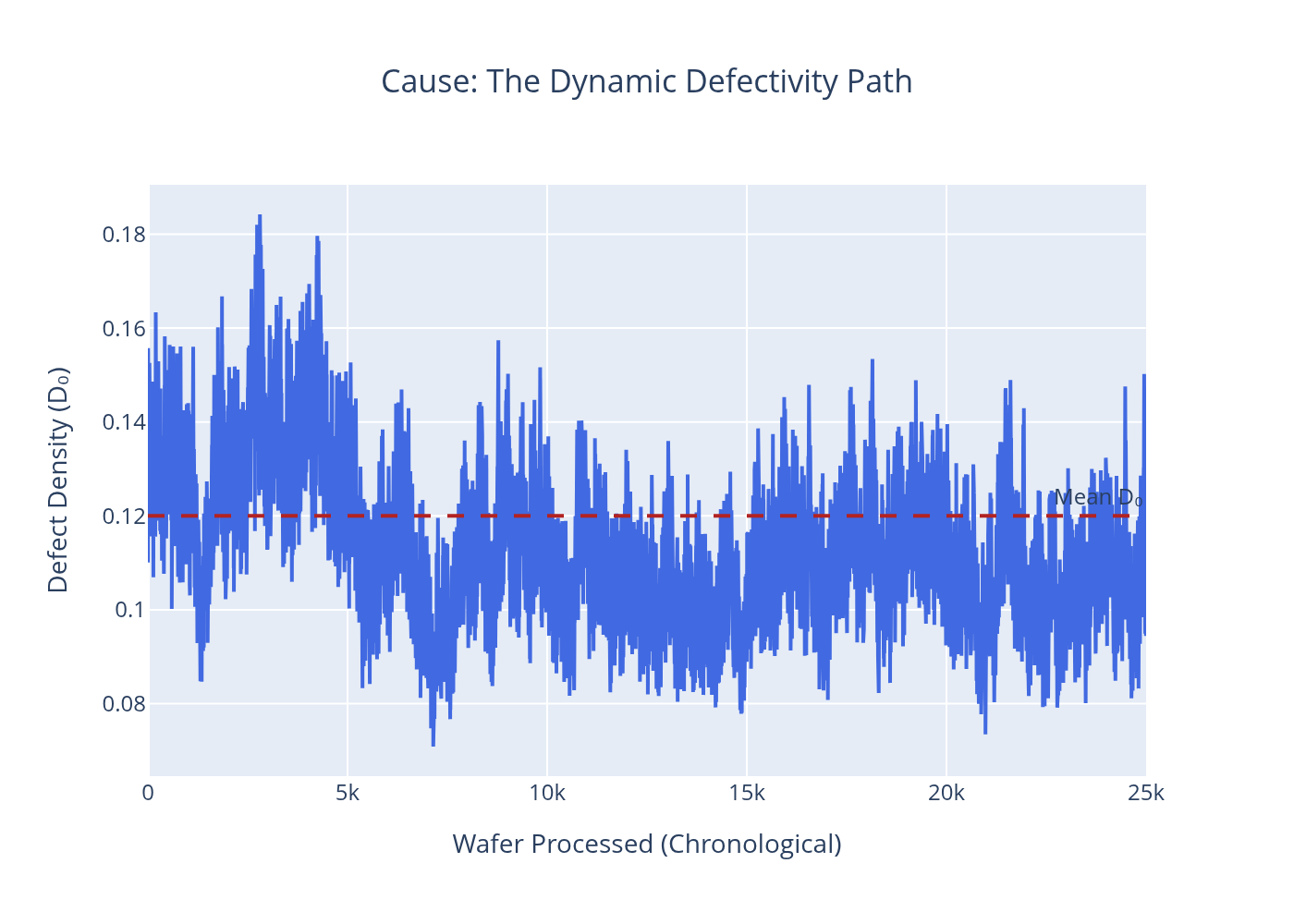

Stable Fab — D₀ path
D₀ Path

05 — Big Chip Yield Challenge

Stable fab, standard product mix except customer N's die grows from 650 mm² to 850 mm². Fab stability is excellent — process volatility is unchanged. What changes is physics: a larger die is a larger target for random defects. This scenario isolates product complexity as a cause of yield loss, independent of process instability.

Big Chip — yield chart
Yield by Customer

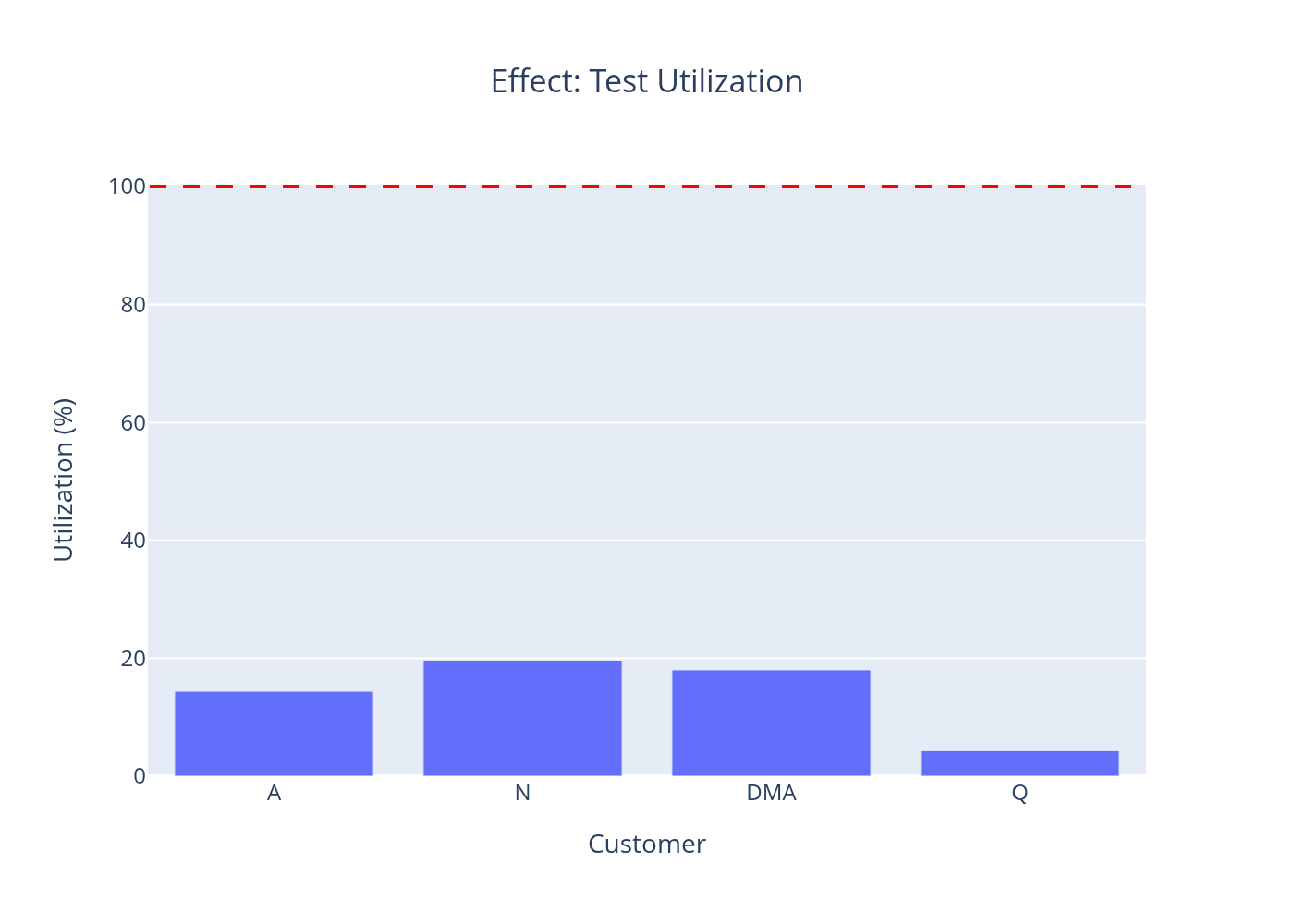

Big Chip — test load
Test Floor Load

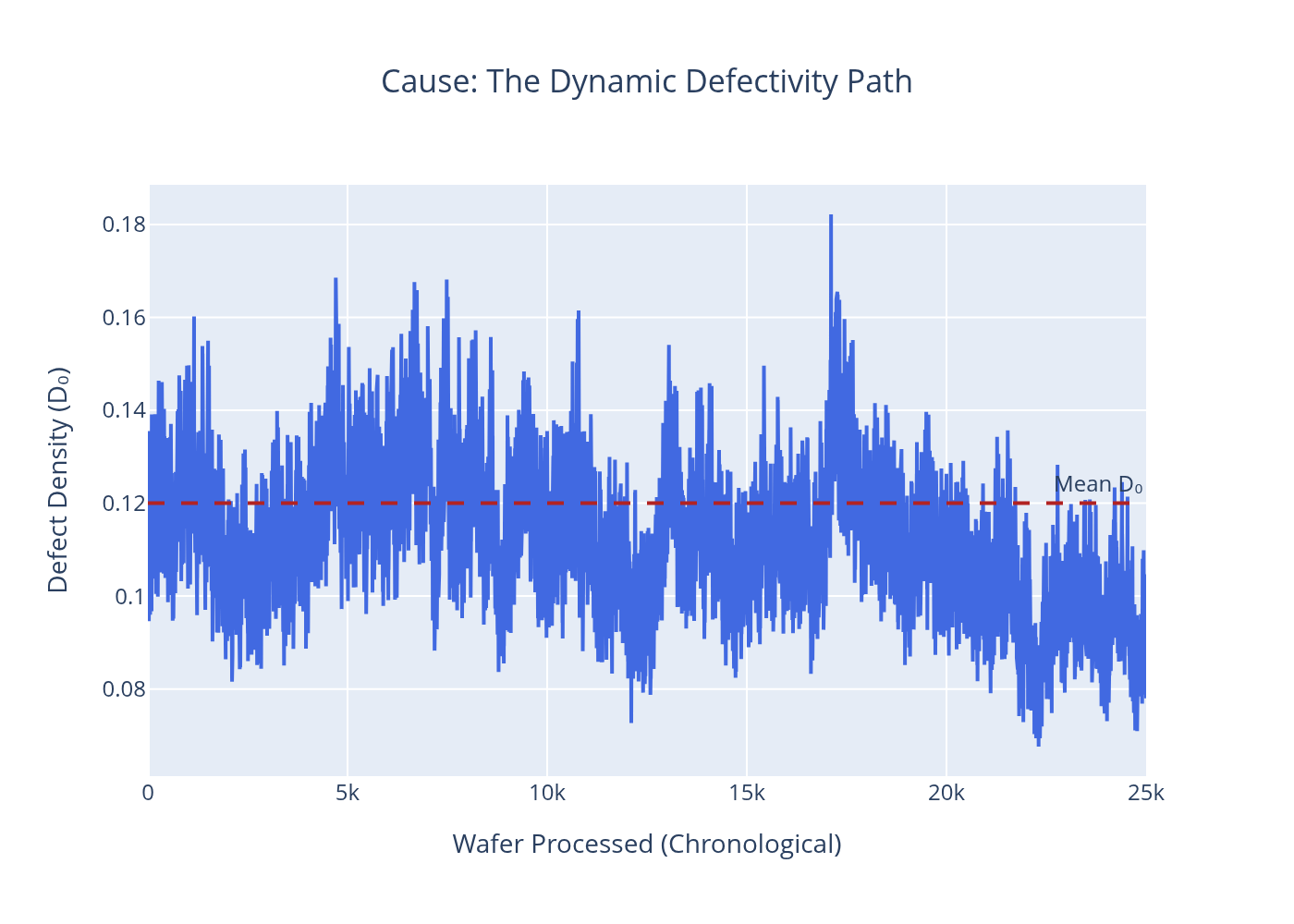

Big Chip — D₀ path
D₀ Path

Result: Customer N yield falls to 63.7%. Shippable dies drop to 353,511. The D₀ path is unchanged — the process is clean. Only the die area changed.

06 — Unstable Fab Risk

Full RVH storm regime: low Hurst exponent (H = 0.10), high process volatility (ν = 1.0), frequent excursions (30% daily probability, 10× impact multiplier). The D₀ path is chaotic — large persistent swings with sudden spikes. This is the scenario that makes the RVH framing matter: no static model can reproduce or predict this output from the mean alone.

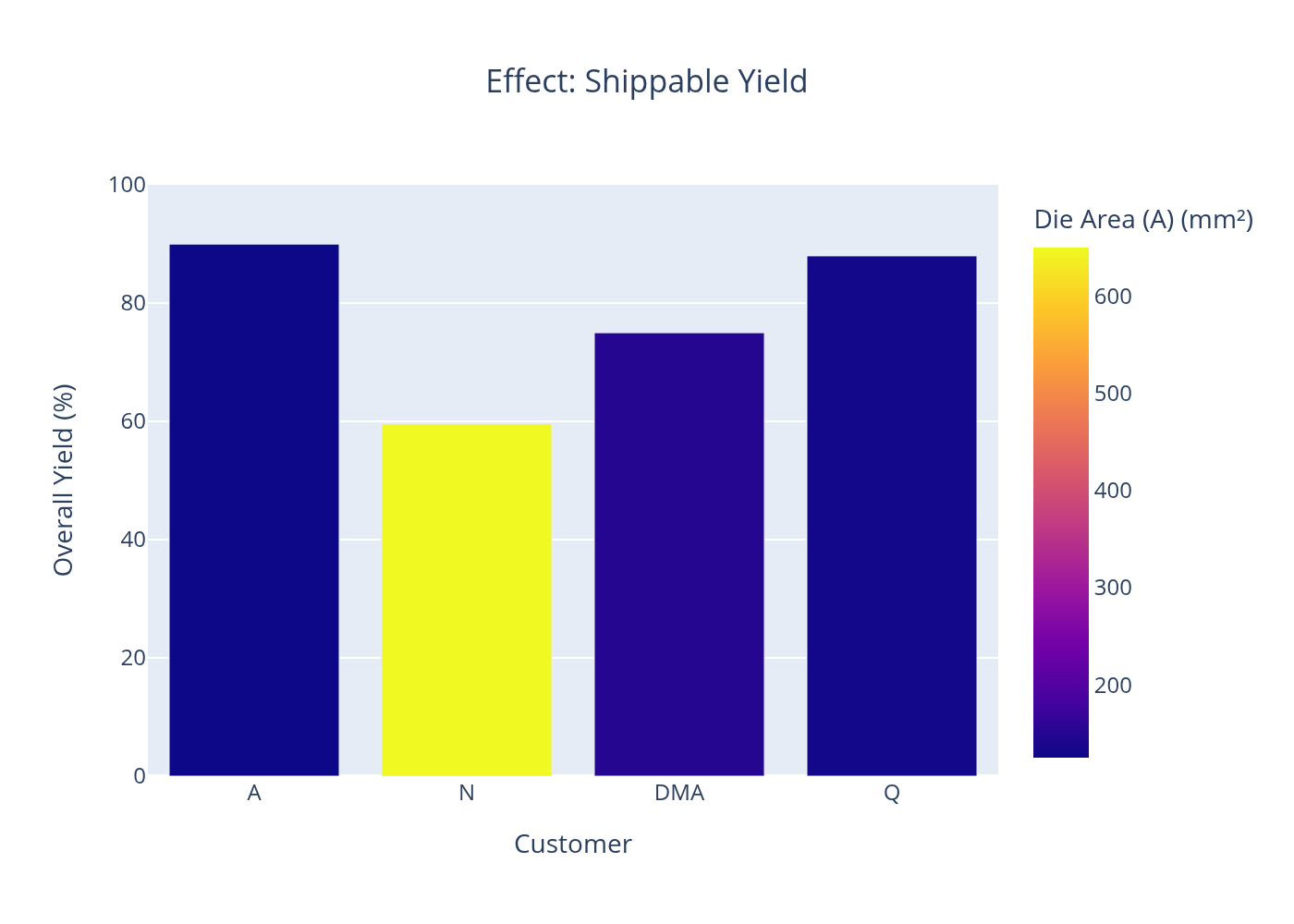

Unstable Fab — yield chart
Yield by Customer
Unstable Fab — test load
Test Floor Load

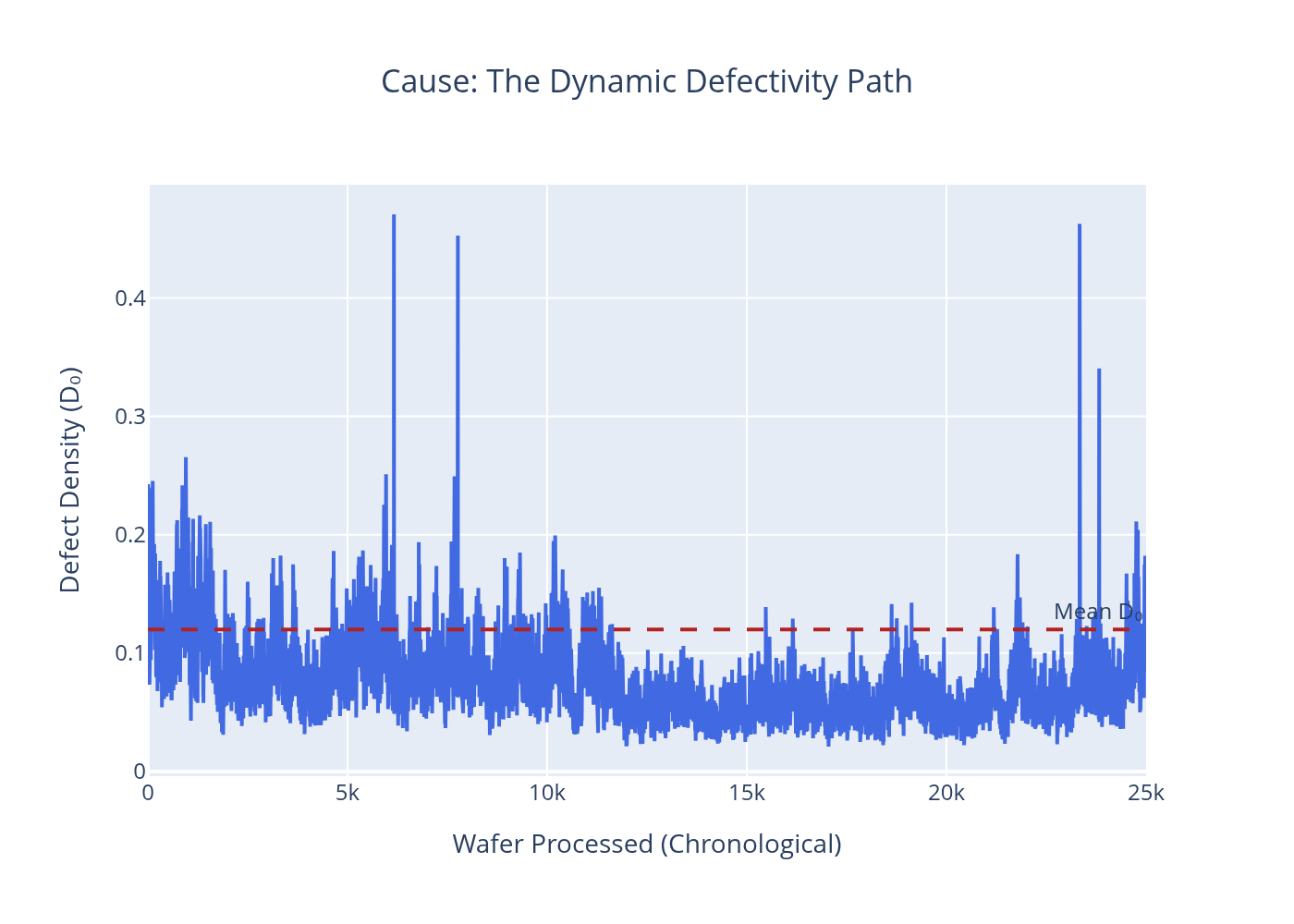

Unstable Fab — D₀ path
D₀ Path

Result: A → 90.0% · N → 59.6% · DMA → 75.0% · Q → 88.0%. Instability damages all customers simultaneously. It is not a localized nuisance — it is a plant-wide operational risk.

−7.1%
Shippable output lost — stable fab to unstable fab
This is the central quantitative result. It emerges from the path of defectivity, not from any change in mean D₀. Static models, seeing the same average, would not predict or explain this loss.

Summary Impact Chart

Scenario-by-scenario yield and output comparison across all customers. The step from stable to unstable is the dominant economic event — larger than any individual product or process parameter change.

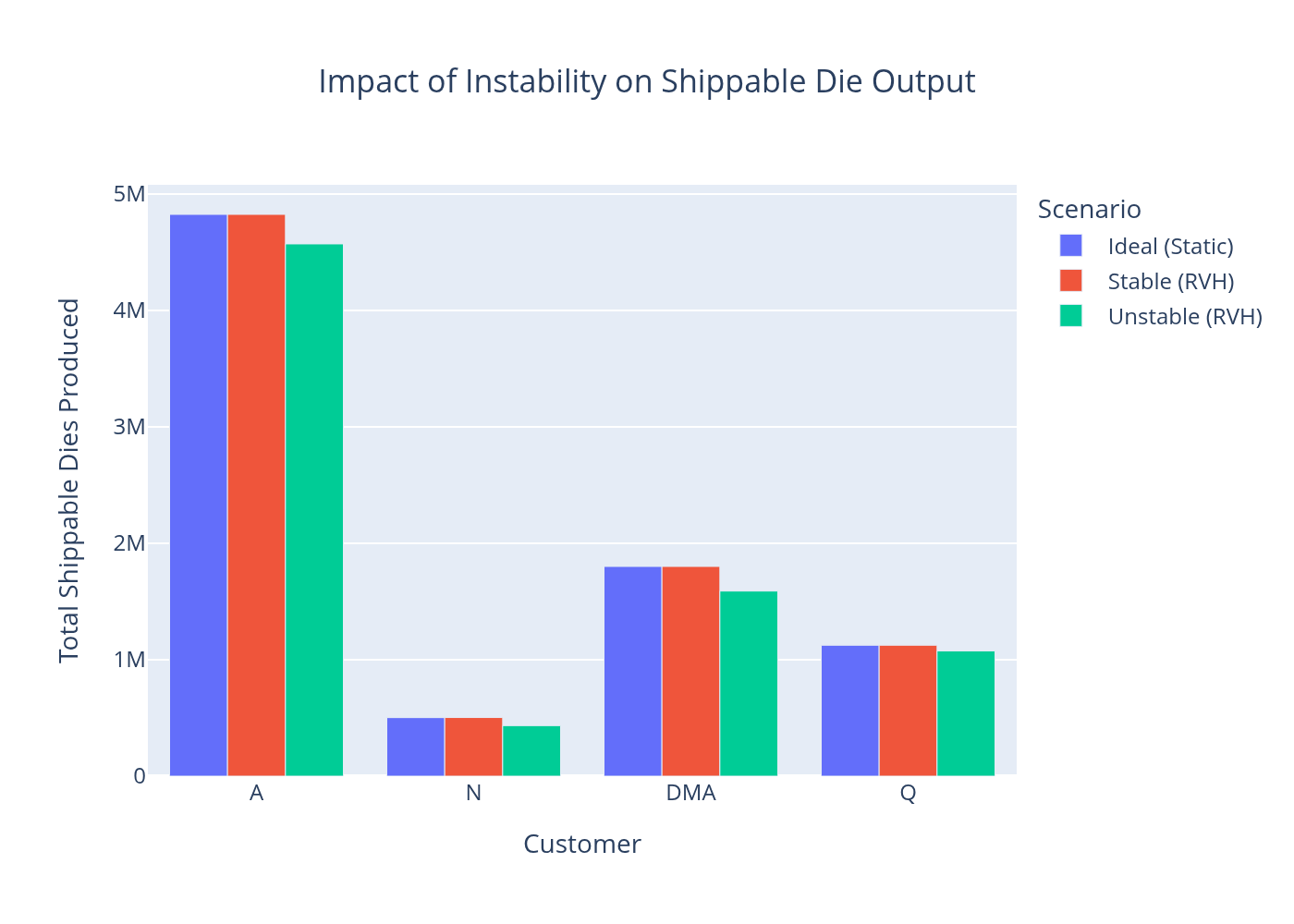

Summary impact chart — yield across all scenarios
Yield and shippable die output across all six scenarios

Why the Path-Based Model Matters

Static Models Are Blind to Excursions

A static model with D₀ = 0.12 predicts the same yield whether the fab holds steady or swings between 0.04 and 1.20. The average is the same. The output is not.

Instability Has a Legible Dollar Cost

RVH makes the 7.1% loss calculable and attributable. A fab running 25,000 wafers/month with 1,500 dies/wafer loses ~2.7 million good dies per month in the unstable regime.

Cause Attribution Becomes Possible

Die area (Scenario 05) and process instability (Scenario 06) produce different yield signatures. They are separable — and require different remediation strategies.

The Hurst Exponent Is the Key Diagnostic

H controls memory. A rough, low-H process stays bad longer after an excursion. Monitoring H in real fab data gives early warning that the process has entered a persistent bad state.
